应用领域与简单/Purpose and introduction：

NQGF型西林瓶粉针洗烘散装轧盖标贴一体化线 由QCL编直列V型超声检查检查波洗瓶机、AQMR所谓的隧道式热气间歇过滤除菌烤箱、NQFGX编电脑数控丝杠粉剂散装机、NQ-50轧盖机、NQWTB-120标贴机柜成，也可单机手游采用。适于于7-25ml型号的西林瓶粉针的出产。能完毕喷淋系统充水、超声检查检查波粗洗、瓶表面水消毒器、瓶罐壁不间断性分批间歇水消毒器、一场性吹气、一场性新鮮水消毒器、不间断性分批吹气、瓶表面吹气、进行维护清洁、加热、烘干处理过滤除菌去热原、待冷却、散装、加塞、轧盖、标贴等二十几道生产工艺。NLGF schering bottles booster injection wash baked repackaging rolling cover labeling line consists of QCL series vertical ultrasonic bottle washer, ASMR tunnel type hot air circulation oven. NFFGX series CNC screw powder filling machine, NF-50 rolling machine, NFWTB-120 labeling machine, and also can be used stand-alone. Suitable for 7 to 25 ml specification schering bottles of water production. Can finish the spray water injection, ultrasonic thick bottle washing, the outer wall of water flushing, bottle wall continuous secondary circulating water flushing, a blowing, a fresh water rinse, two consecutive bottle blowing, blowing the outer wall, preheating and drying sterilization to pyrogen, cooling, packaging, gasser, cover, labeling and so on more than 20 procedures.

作用/characteristic：

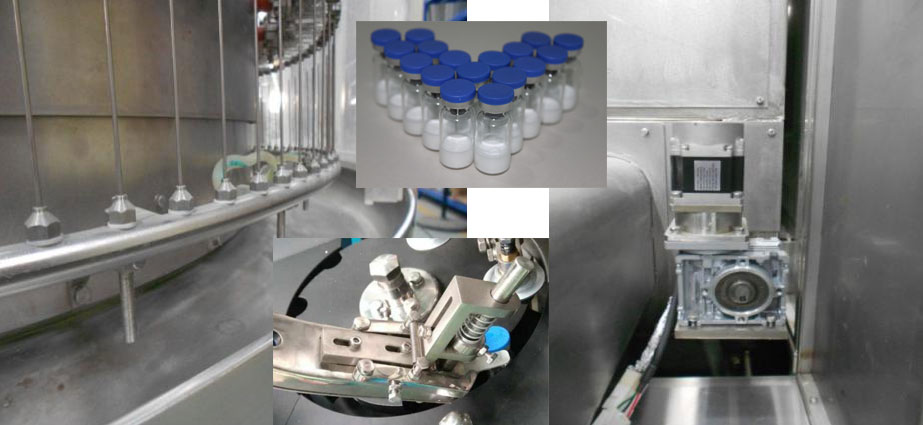

◆洗瓶机选用机械设备手夹瓶，选用多样要求的西林瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of schering bottles;◆洗瓶采用了雾水喷针往返定位跟踪复制途径，拆洗成效好，省清洁能源。并现有针架防颤抖系统设计，增强喷针复制空瓶的合理度，避免断针想象的发生；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶整体水雾压缩空气管、喷针完整自由单独，尽量不要了双向严重污染，非常符合GMP技术规范规范要求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺旋轴前还可以加装防护块，有防护螺旋轴，极大减少碎瓶做用；Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottle;◆洗瓶机出瓶用于总体美国进口关联带，连到拨瓶块运输西林瓶，行驶动态平衡稳定可靠；Pieces out of the bottle inside the whole import synchronous belt, the connection dial the bottle conveying schering bottles, operation is stable and reliable;◆干燥箱运用制热重复蒸汽加热，温湿度不匀，节能环保；Oven adopts hot air circulation heating, temperature uniformity, energy saving;◆真空烘箱不设防莫名其妙关闭电源庇护工作。正常运作安全管理；Mixer oven has suddenly loses power protection function. Run security;◆烘干箱可配巡环风冷设施，不自然损耗房内风口尺寸，极大减少房内的气体压力不平衡量的概率加温感觉好；Mixer oven can match circulating water cooling device, not loss room air volume, reduce the risk of differential pressure imbalance in room cooling effect is good.◆烘干箱可配风风压差定时平横控制体系减轻屋内和烘干箱的风风压差不平横从而造成的气温段偏斜，装罐间洗烘间气温升高等学校一国产的原因；Mixer automatic oven can match differential pressure balance control system to reduce the room and high temperature oven pressure difference caused by the imbalance of period of migration, filling between wash between baking temperature and so on a series of problems;◆干燥箱设立DOP检查测量接头(有风压差、流速、玦尘塑料颗粒检查测量口)；Mixer oven with DOP test interface (including wind pressure, wind speed, dust particle detection);◆恒温干燥箱冷确段可带线下灭菌处理功用(FDA特选)；Mixer oven cooling segment with the function of sterilization (FDA selected);◆烘烤箱网带可带超音波涌入CIP一直在线清洁工作设计；Type mixer oven mesh belt with ultrasound scanning CIP online cleaning system;◆干燥箱内腔室可去全东南方向、多全方位直流高压水洗；In pieces inside the oven chamber can be all-round, multi-angle high-pressure water flushing;◆灌装机通过亚太更高端的构思安全理念，拥有飞线速度，而分瓶正确，换新型号件不方便；Mixer racking machine adopts the most advanced design concept, high speed, and bottles of accurate, replacement of a convenient;◆全自动灌装机机所采用交流信息交流伺服三相电机三相电机安装驱动全自动灌装机螺母补偿器，装量精准；Mixer racking machine adopts ac servo motor drive the repackaging screw rotation, the load accurately;◆包装机用到装量的調整真接在触摸式屏上达成；Mixer packer adopts the load adjustment directly on a touch screen;◆全自动灌装机机先选配百级嵌套循环式层流罩；Mixer packer optional circulating laminar flow hood best level;◆全自动灌装机机无瓶停下全自动灌装机，无瓶不添加塞能力。Racking machine without stop packing bottle, no bottle no stoppered function.◆整线采用了PLC总设定、直流变频空调器、触模屏设定技术应用，正常运作安全可信性。触模屏可出现各单机联机的正常运作形态，各设定点的压差、空气压力、气压、温等出现，各打开形态和发动机故章出现，发动机故章自我价值观临床诊断和发动机故章数据分析及除掉最简单的方法。使这个的生孩子操作过程提高机械化化设定，联线具备电气自动化动平衡部件，确保的生孩子均衡教育可信性。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. Make the whole production process automation control, on-line has the automatic balancing device, ensure production equilibrium is reliable.结合老客户的所需，还可供选用：According to the needs of customers, but also available for selection:◆西门子装置、德力西、三凌、台达等牌子把控装置；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气心理压力、温度及超声清洗波抗弯强度、尘烟水粒子、风力在线上检测工具、警报、记录时间、打印机软件；Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system;◆ORABS、CRABS、无菌检测分隔器模式。ORABS, CRABS, aseptic isolator system.

方法产品参数：/technical parameters

材质 model

生育力production capacity

洗瓶适合率Washing bottle percent of pass

洗瓶状态率Washing bottle breakage

灭菌方法温暖sterilizing temperature

全自动灌装机随机误差The repackaging of error

加塞不及格率Gasser percent of pass

空气质量层流洁净车间度Laminar air cleanliness

真空箱抽速Vacuum pumping speed

电容（电容器）量 capacitance

主机电源power supply

总储电量Total transmission energy

看上去规格boundary dimension

7-25ML标准西林瓶 7-25ML GBvial

300瓶pcs/分min ～600瓶pcs/分min

≥99%

≤0.1%

300℃-350℃

≤±3%(0.1-10h)

≥99%

100级100c

25m3/H(外配)100cbm/H ～50m3/H(外配)100cbm/H

96kw～235.5kw

380v,50HZ

约 8200KG

约 2000×1750×2370mm
