种类与简绍：/Purpose and introduction

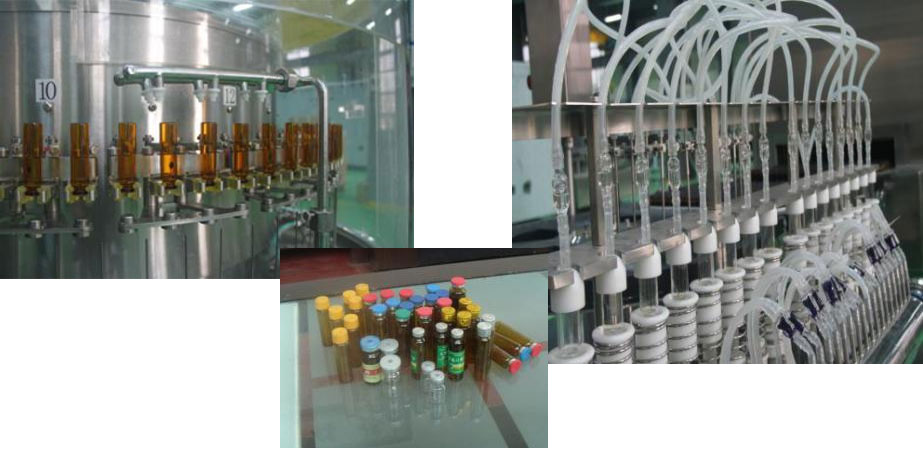

原浆、油类药液洗烘灌轧三级联调线由落地式多普勒彩超波洗瓶机、地下隧道式热气 循环系统高压蒸汽过滤除菌烘烤箱、原浆、油类药液装灌轧盖机等构造，适于 5-30ml 等有所差异规 格原浆、油类药液瓶的生产加工方式。可做好对otc药品生产加工方式中安瓿瓶淋水、多普勒彩超波清理、冲水、充 气、吹干高压蒸汽过滤除菌、水冷却、装灌、轧盖等加工步骤之一的三级联调运动。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

特质:/characteristic

◆洗瓶机利用机械性手夹瓶，支持种规模的水瓶座；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶选用水蒸气喷针导杆关注复制具体方法，的清洗郊果好，节电能源开发。并不设针架防会抖系统设计，的提升喷针复制瓶里的较准度，可以减少断针这种现象发生了；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶整体的热气蒸汽管道、喷针彻底独自分别，尽量避免了穿插生态破坏，贴合GMP制约标准；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶罗杆前装个降低块，有确保罗杆，少碎瓶功效Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶用纵向国外同步操作带，对接拨块传送口服药液，程序运行固定牢靠In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆烘烤箱应用红外线加熱管，不锈钢材料加熱管三层加熱摄氏度匀称性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆装灌轧盖机能选配瓷质泵、不锈钢管泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆灌装线无瓶止灌，无瓶不轧盖工作。Pieces filling without bottle filling, no bottle no rolling function.◆整线使用PLC总掌握、abb变频器器、触控屏掌握技术性，进行保持稳定信得过。触控屏可表现各pc单机的进行睡眠感觉，各掌握点的压力、大气压、风速、湿度等表现，各的控制开关睡眠感觉和出现系统系统故障表现，出现系统系统故障个人能力就诊和出现系统系统故障了解及除掉工艺。使另一产生的方式以达到自然化掌握，联线含有三机自动化动平衡平衡装置，确定产生的营养均衡信得过。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.会按照的客户的需求，还可供标准配置：According to the needs of customers, but also available for selection:◆西门子操控体系、斯耐德、三菱数控操控体系、台达等产品品牌管理操控体系；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气各种压力、油温及彩超波的强度、埃尘塑料颗粒、风量百度在线监测、短信报警、的记录、打印图片体统。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、无茵隔离开器机系统。Mixer ORABS, CRABS, aseptic isolator system.

技术应用叁数：technical parameters

适用于的规格Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
灌装设备要求Filling accuracy(%)	≤ ± 2.5
灌装设备头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖合格证率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
