不同的用途与概况/ Brief Introduction：

本制造制造线由全一键理瓶机、滾筒式洗瓶机、无菌干机、眼蓝药液分装旋盖机、落地标贴发电机成，可顺利完成理瓶、水、气的清晰、风干及臭氧老化紫外线灯消毒、分装、加塞、旋盖、标贴等多种工序，主要的用在眼蓝药液以及他小用药量饱和溶液的联线制造制造，也可单机手机游戏单独的应用。彻底适合GMP请求。This production line consist of  Automatic Bottle Unscrambler,  Bottle Washing Machine, Tunnel Type Sterilization Drier, eyedrop filling machine, Vertical Labeling machine, can complete bottle sorting, water,and gas cleaning, drying and ozone disinfection, filling, plugging, capping, labeling, mainly used in eyedrops and other small doses of solution, also can be used single independently.　 Meet the GMP requirement.

基本特征/Characteristic：

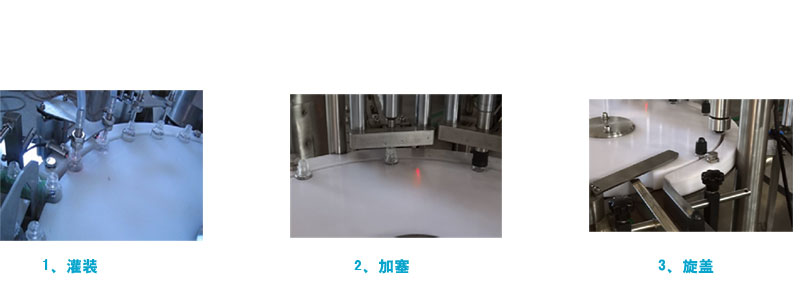

滤油机组设计构思成分合理有效，作业不稳定性、灌装设备精密度较高，具我国同行的产品业好技术。压根适合GMP标准化。     眼药剂分装旋盖机已去我平台的三代试管產品，组队画面控住，排泄泵分装，由真空室吸自动的化设备手替换标准气缸较好的打塞，能保证了保持稳明确和适合率。选用恒发动机功率旋盖，有着无瓶不分装、无塞不上盖，无瓶无塞可自动的关机的基本功能。    It with reasonable structure, higher precision in filling, reaching the advanced level in domestic same business. Meet with requirement of GMP standard completely.eyedrop filling capping machine is a third generation product, human-machine interface operation, filling by peristaltic pump, replace air cylinder with vacuum drived manipulator for plugging, aquire higherstability and percent of pass. Constant torquecap screwing. No bottle no filling, no plug no capping and automatically stop if cap and plug is under-supply.

技木参数指标/technical parameters：

选用品种/Bottle size	10-20ml
工作程度/Capacity	40-60瓶/分  70-120瓶/分 40-60/  70-120 bottles/min
用自来水水压/ Hydraulic Pressure Mpa	0.3Mpa
需要用出水量 /water consumption	0.5 m3/h
洁净度减少热空气心理压力 /Clean compressed air pressure	0.6-0.8Mpa
无尘室压缩成新鲜空气容量/Clean compressed air consumption	300 L/min
电压/Voltage	380V/50Hz
功效/Power	5.5 kw
的加工线总长/Dimension	11000*1500*1900mm
