贷款用途与百科/Brief Introduction：

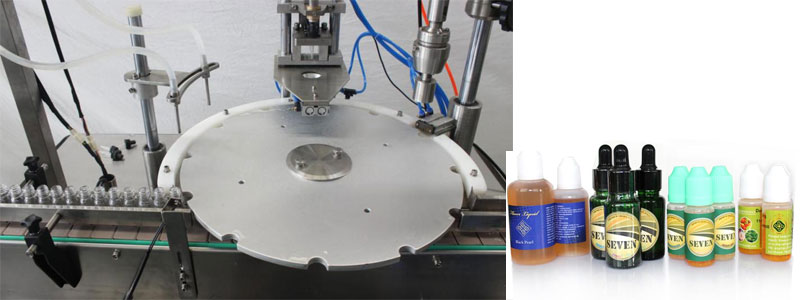

滤油机实用到2-30ML一些质地的长方形扁形塑料件或有机瓶子的眼药粉灌装设备线生产线.滤油机由高表面粗糙度轴承装置度数装置展示度数等分盘市场定位手机上塞上盖;时速度轴承装置传送展示旋盖头的启闭;恒转矩旋盖;胃排空泵测量检测灌装设备线生产线;触模屏抑制.无瓶不灌装设备线生产线,不用内塞,外盖.具市场定位手机小于,传送有序,保护性瓶子,测量检测准.运行简洁等优缺。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

优点/Characteristic：

◆微电脑上人设、装量高精度、操作流程方便快捷。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆冷水机速比可使用无级变速变频式变频调速。the mainframe running speed is stepless frequency conversion.◆生产加工量会自动化学发光法掌握。the product quantity can be controlled. ◆多种类错误代码显示系统功效(如低风压。无装罐、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆智能停电作用，对同一个铁轨会出现不间断无灌装生产线、无内塞情况报告可智能停电。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技能规格/Main Technical Parameters：

适合规格尺寸Filling Volume	2-30ml
产生力量Productivity	30-60瓶/分  70-100瓶/分30-60bottles/min    7꧒0-100bottles/min
灌装设备计算精度Filling Precision	≤±1%
电 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
电脑自动上塞率Stoppering rate	≥99%
气动阀门Air Supply	1.3 m3/h    0.4-0.8Mpa
最大功率 Power	2.0 kw
产品总重量Weight	550 kg
形状尺寸规格Dimension	1800*1000*1500mm
