借款用途与详细资料/Brief Introduction：

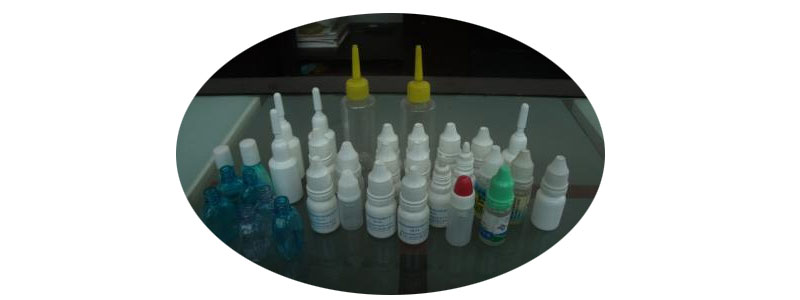

超声波焊接机不适用来2-30ML种种材料的圆圈扁形朔胶或玻离瓶的眼药剂包装、电子器材烟油等小含水量包装.超声波焊接机由高准确度凸轮轴组织机构度数组织机构具备度数等分盘标记上塞上盖;加快流速度凸轮轴组织机构传动装置系统具备旋盖头的伸降;恒扭力旋盖;颤动泵收费包装;触摸显示屏屏把控好.无瓶不包装,不用内塞,外盖.具标记精准度,传动装置系统保持稳定,庇护盖子,收费准.控制轻松等优势之处。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

亮点/Characteristic：

◆微笔记本电脑设计、装量透彻、的操作便利。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆虚拟主机钻速可去无级变速直流变频调压。the mainframe running speed is stepless frequency conversion.◆产出量电脑自动化学发光法抑制。the product quantity can be controlled. ◆种错误代码的提示能力(如低压力。无装罐、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆主动熄火职能，对指定单轨显示不间断无灌装线、无内塞情况报告可主动熄火。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

高叁数表/Main Technical Parameters：

适宜品种Filling Volume	2-30ml
加工特性Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
灌装生产线的精密度Filling Precision	≤±1%
开关电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自己上塞率Stoppering rate	≥99%
汽源Air Supply	1.3 m3/h    0.4-0.8Mpa
额定功率 Power	2.0 kw
机净重量Weight	550 kg
自己的外观长宽Dimension	1800*1000*1500mm
